FOH 8-40 / 10-76 / 20-114 / 40-168 welding heads

Mechanised orbital welding

WELDING PROCESS: TIG
Open welding heads for the mechanised TIG orbital welding of pipe joints (external diameter 8 - 168 mm) made of steel, stainless steel, titanium, nickel-based alloys, aluminium and other materials with and without the use of filler wire.

Please choose your desired product.

PRODUCT DETAILS

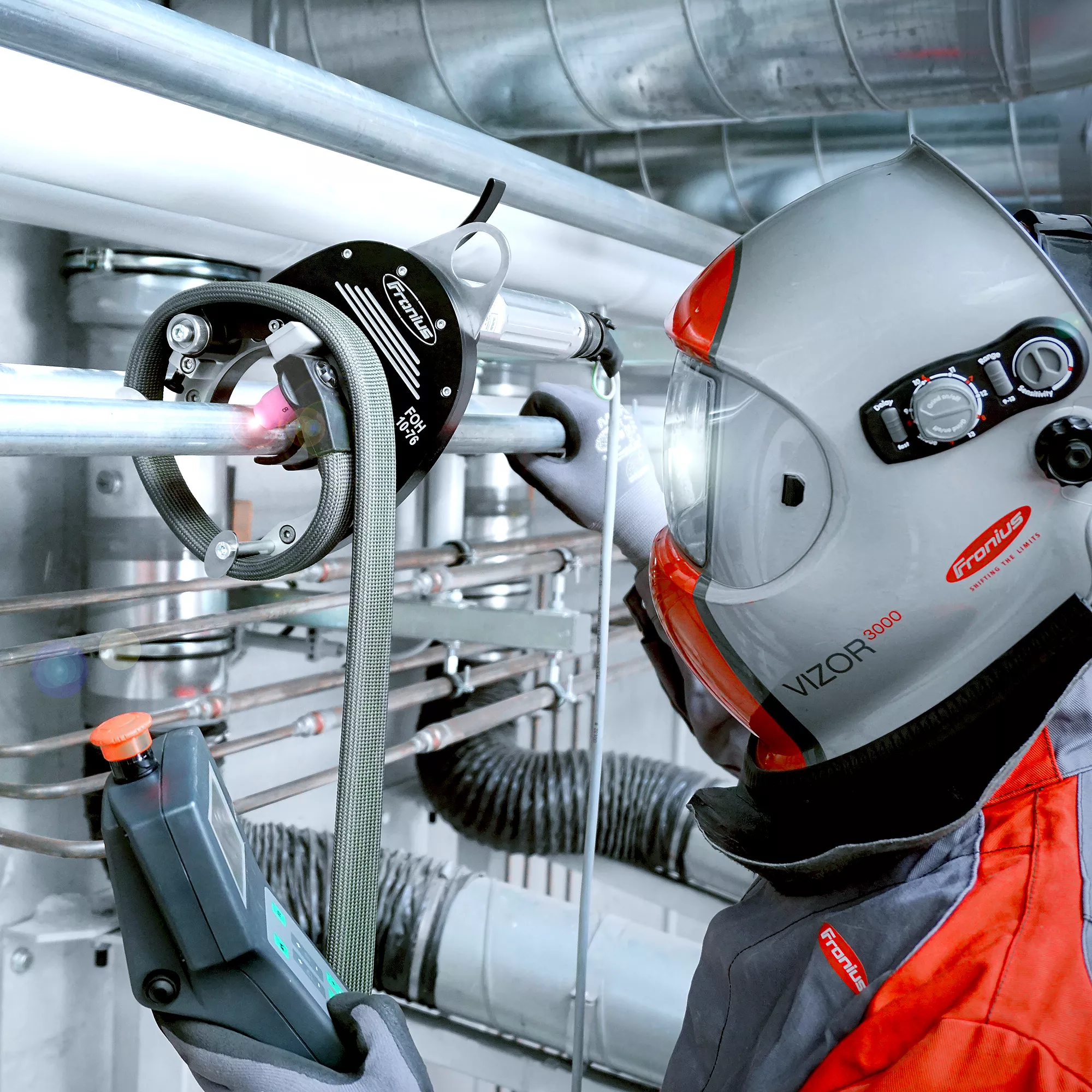

Open welding head with component

SPOT-ON VERSATILITY.

  • FOH welding head with up to two sets of reducing jaws, depending on the type of welding head
  • Integrated servo motor
  • Automatic movement to the opening position
  • Freely definable start position
  • Automatic switch-off of the motor current in the event of overloading
  • Continuously adjustable clamping/centring system for quick adjustment to the tube diameter

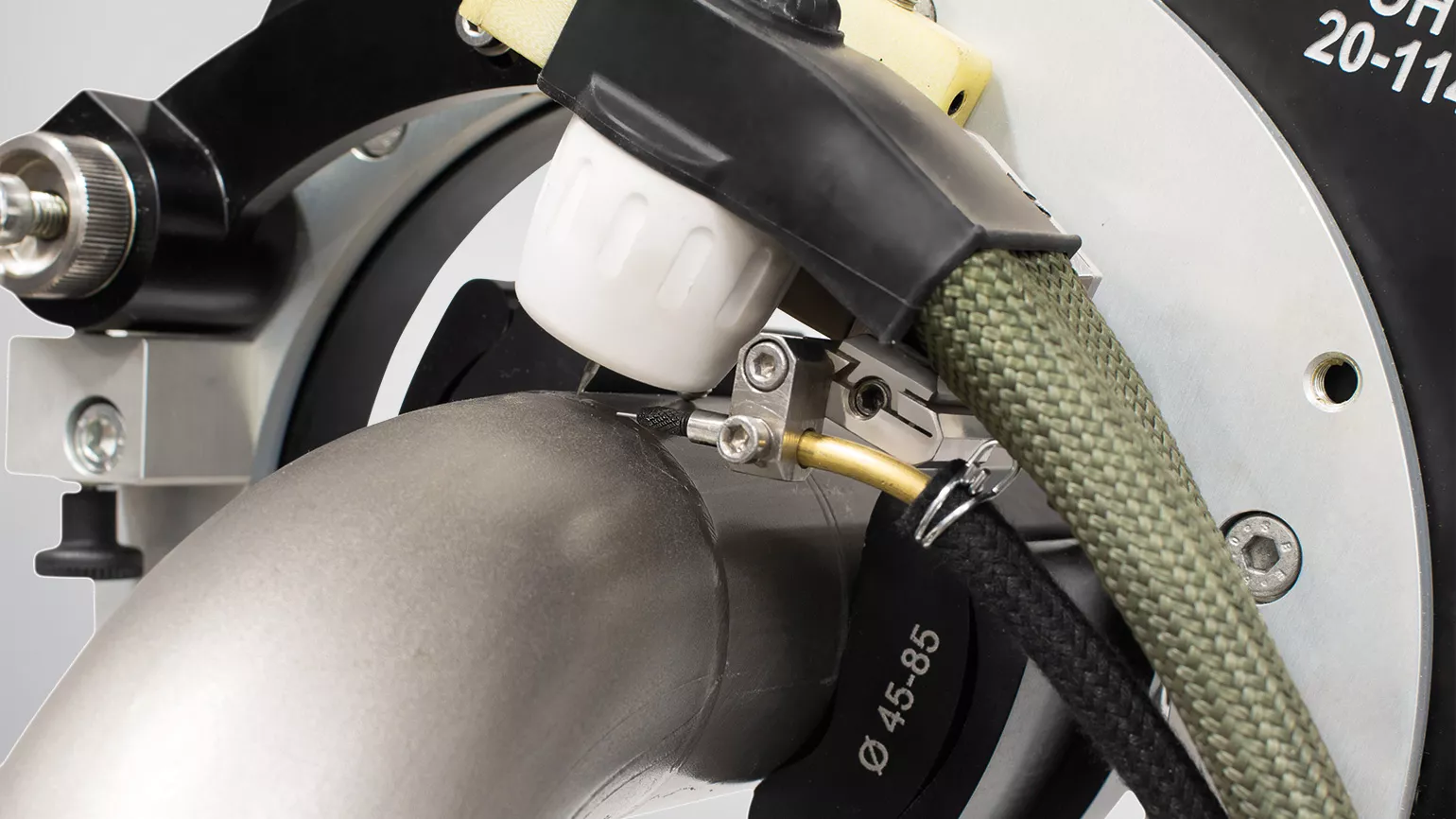

  • Mechanical tube tracking for constant electrode distance
  • Torch mounting 0 - 45°, continuously adjustable
  • Manual lateral correction of the electrode
  • Swivelling torch holder with fixing
  • Plug-in control line (6 m)
  • Orbital welding torch with insulated torch body and high duty cycle
  • Best possible gas shield and low level of temper colouration
  • Welding torch with simple wearing part replacement system
  • Transport case with trolley function

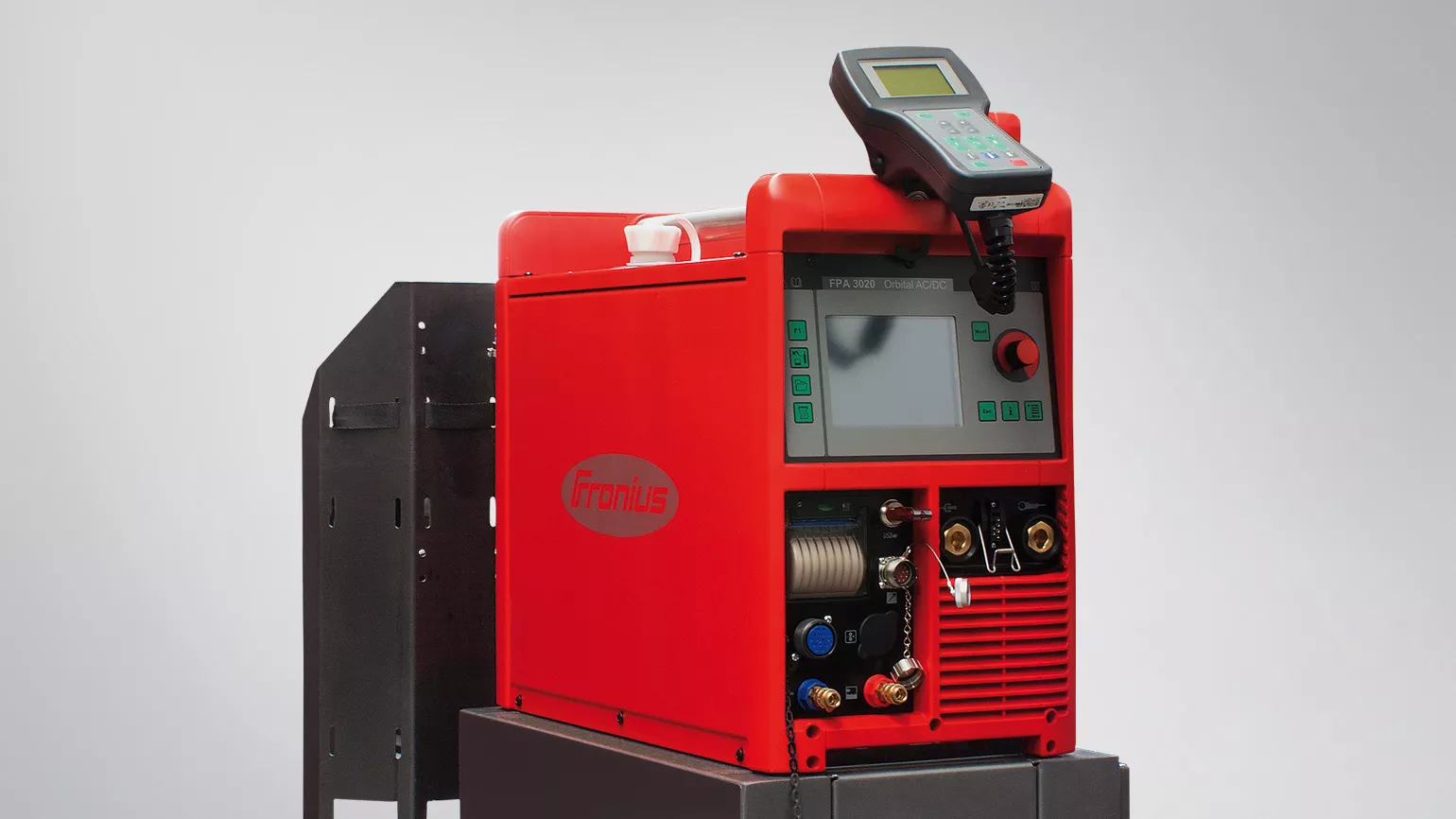

FPA 3020 system controller

STANDARD EQUIPMENT.

  • Lightweight, compact design – ideal for portable use
  • Integrated microprocessor control
  • Integrated 200A, single-phase inverter power source
  • Generator-compatible
  • Integrated water cooling with water detector
  • Integrated gas flow detector
  • Intuitive touchscreen control panel with colour graphical process diagram
  • Choice of languages (De/Gb/Fr/It/Es/Pb/Ru/Cz/Tr/Pl)
  • Storing of programs onto USB flash drive
  • Data backup onto USB flash drive
  • Control of welding current, axis of rotation, forming gas and external wirefeeder
  • Measuring and recording of heat input
  • SynergicMode (material, pipe external diameter, wall thickness, gas, etc.)
  • Auto-diagnosis system (error code display)
  • Welding data documentation on USB flash drive
  • USB port for data transfer/recording
  • Integral printer for welding data documentation
  • FRC-FPA 3020 remote control with 10 m cable
  • 1 x 8 GB USB flash drive

PROGRAMMING WELDING PARAMETERS.

  • 200 programs can be stored and loaded
  • Three tacking programs with up to 20 tacked spots
  • Ten sectors/program with freely definable parameters

FRC-FPA 3020 REMOTE CONTROL FUNCTIONS.

  • Program selection
  • Start/stop with slope, immediate end of welding
  • Emergency Stop button
  • Manual positioning of the movement units
  • Manual wire feed and retract
  • “On-the-fly” parameter changes during the welding cycle
  • Shielding gas test button and forming gas on/off

VALUES DISPLAYED DURING THE WELDING CYCLE.

  • Welding current (A)
  • Arc voltage (V)
  • Torch position (degrees)
  • Welding speed (cm/min)

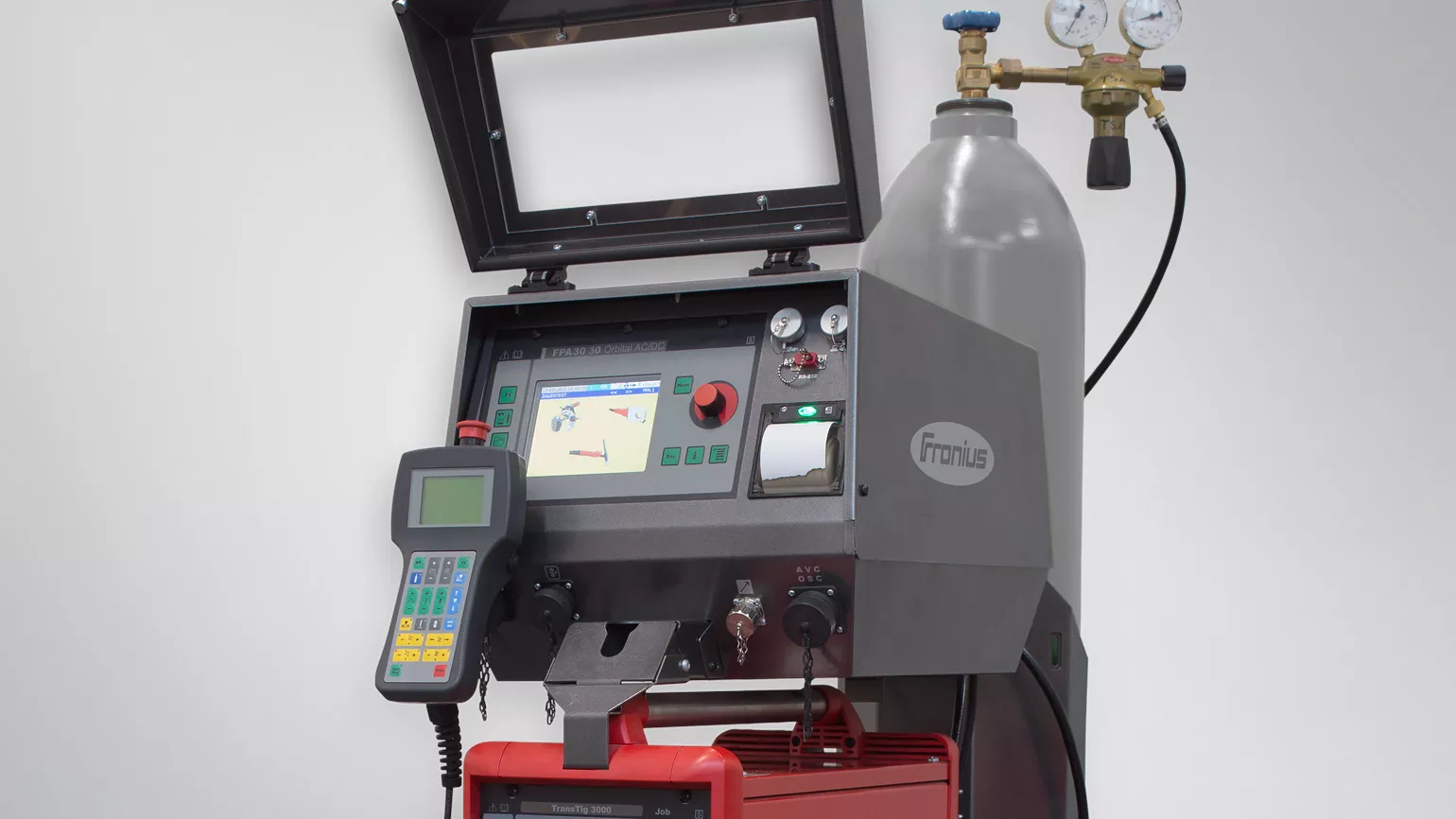

FPA 3030 system controller

STANDARD EQUIPMENT.

  • Mounted on trolley
  • Integrated microprocessor control
  • Generator-compatible
  • Integrated digital gas sensor
  • Easy to program following intuitive operator guidance
  • Remote support via internet connection
  • Colour touchscreen with colour graphical process diagram
  • Choice of languages (De/Gb/Fr/It/Es/Pb/Ru/Cz/Tr/Pl)
  • Control of welding parameters for digital Fronius TIG power sources
  • Control of axis of rotation using encoder
  • Control of wirefeeder and forming gas
  • Welding data recording onto USB flash drive
  • SynergicMode (material, pipe external diameter, wall thickness, gas, etc.)
  • Auto-diagnosis system (error code display)
  • Ethernet and RS232 interface for servicing
  • Storing and loading of programs onto/from USB flash drive
  • Data backup onto USB flash drive
  • Built-in printer prints 40 characters per line
  • FRC-FPA 3030 remote control with 10 m cable
  • 1 x 8 GB USB flash drive

PROGRAMMING WELDING PARAMETERS.

  • 200 programs can be stored and loaded
  • Three tacking programs with up to 20 tacked spots
  • Ten sectors/program with freely definable parameters

FRC-FPA 3030 REMOTE CONTROL FUNCTIONS.

  • Program selection
  • Start/stop with slope, immediate end of welding
  • Emergency Stop button
  • Manual positioning of the movement units
  • Manual wire feed and retract
  • “On-the-fly” parameter changes during the welding cycle
  • Shielding gas test button and forming gas on/off

VALUES DISPLAYED DURING THE WELDING CYCLE.

  • Welding current (A)
  • Arc voltage (V)
  • Torch position (degrees)
  • Welding speed (cm/min)
  • Wire speed (cm/min)
  • Heat input (kJ)

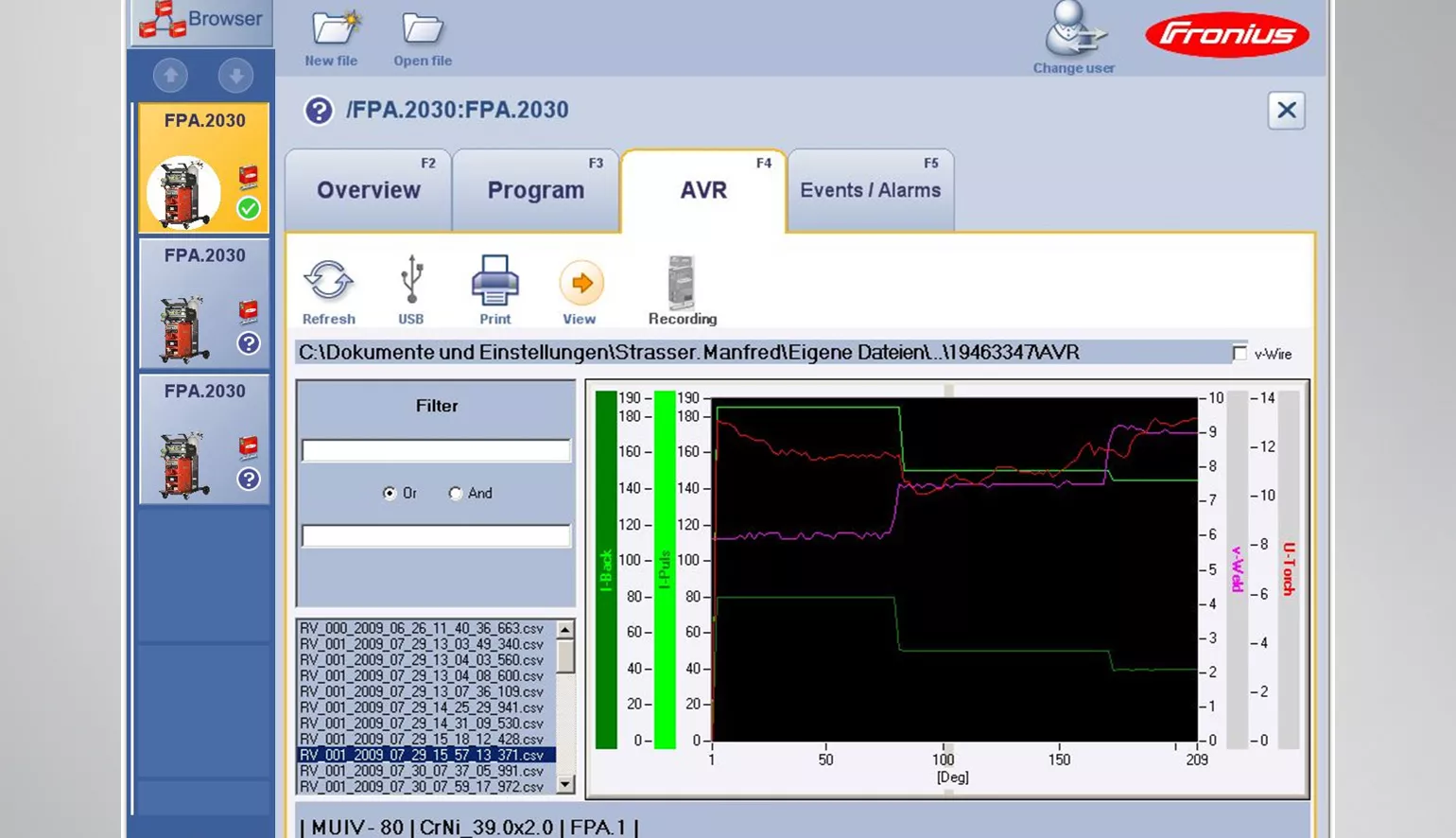

FPA Xplorer screenshot

WELDING DATA DOCUMENTATION, VISUALISATION, ARCHIVING AND PARAMETER CREATION ON A PC.

  • View the properties of all managed devices
  • Manage, edit and archive welding programs
  • Overview of managed devices with status indicator
  • AVR (Actual Value Record): visualise, evaluate and archive recorded actual values – via USB flash drive or in real time via the network connection (online version)
  • Load log book data from USB flash drive or by downloading it directly from the control unit via the network connection (online version)
  • Live display of alarm signals (online version)

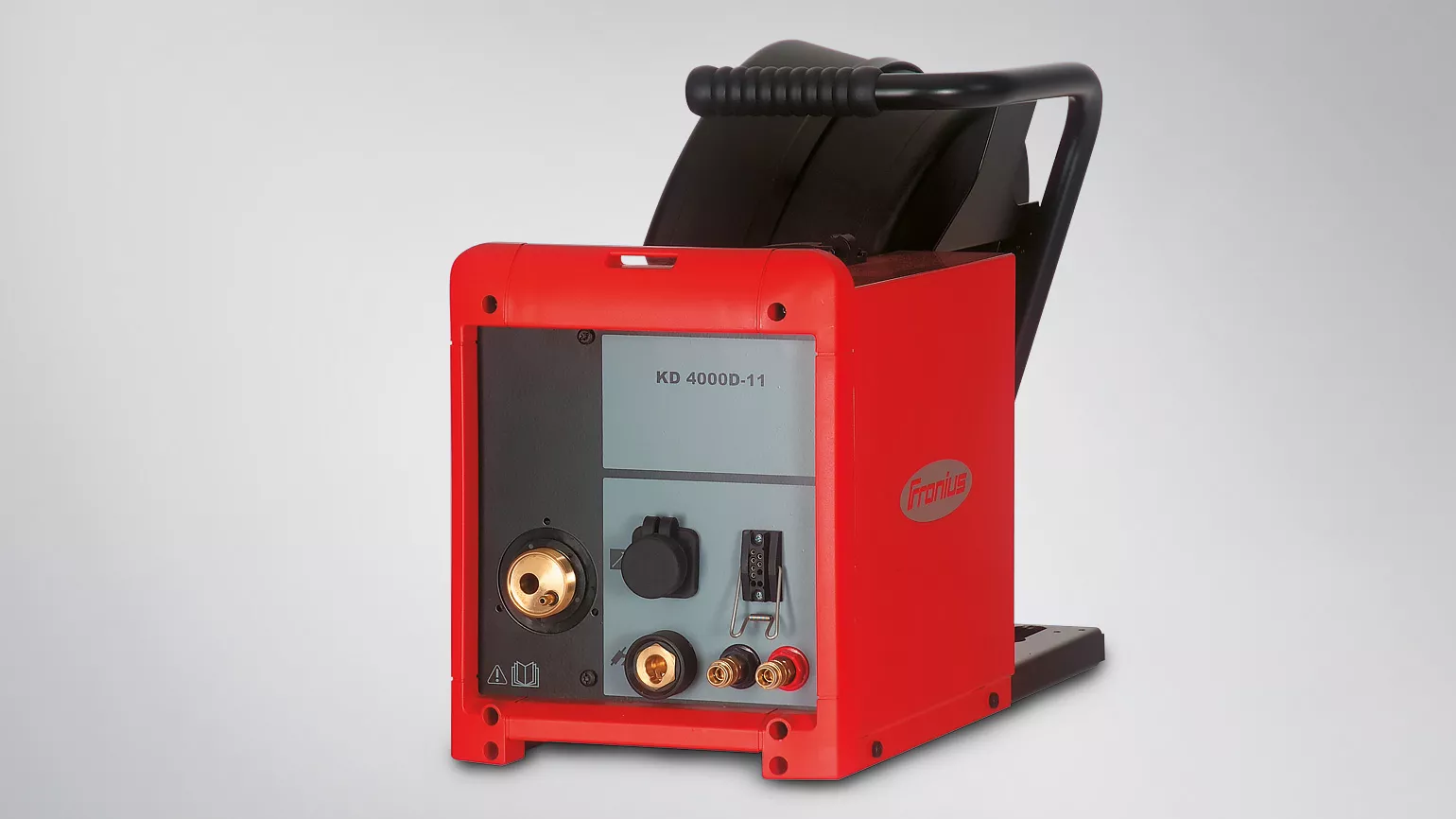

KD 4000 wirefeeder

STANDARD EQUIPMENT.

  • Cold wirefeeder
  • External control of the wire speed via interface
  • Four-roller drive for 0.8 mm wire diameter (trapezoidal groove)
  • Closed wirespool cover for 300 mm/15 kg
  • Hinged/lockable protective cover for motor plate
  • Handle

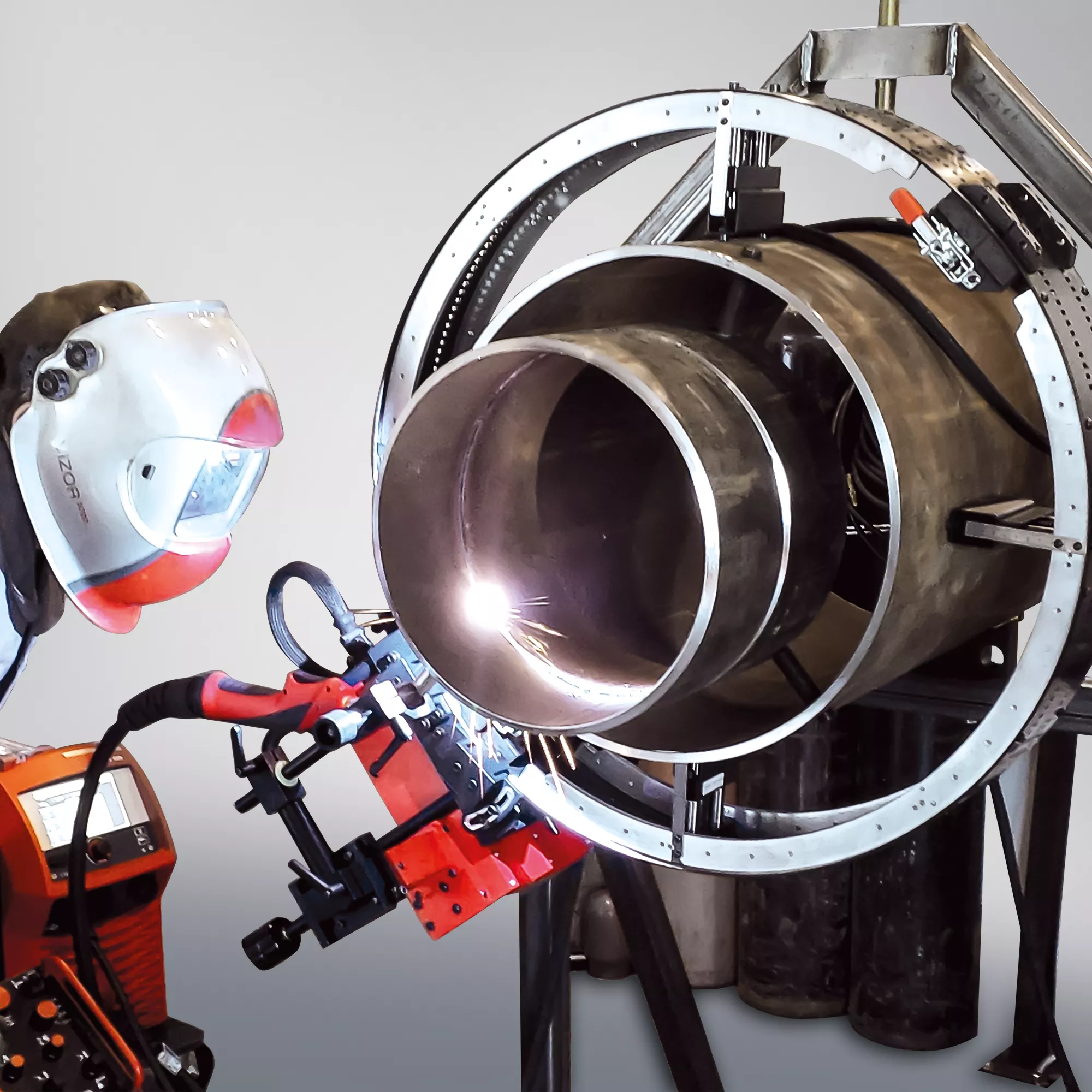

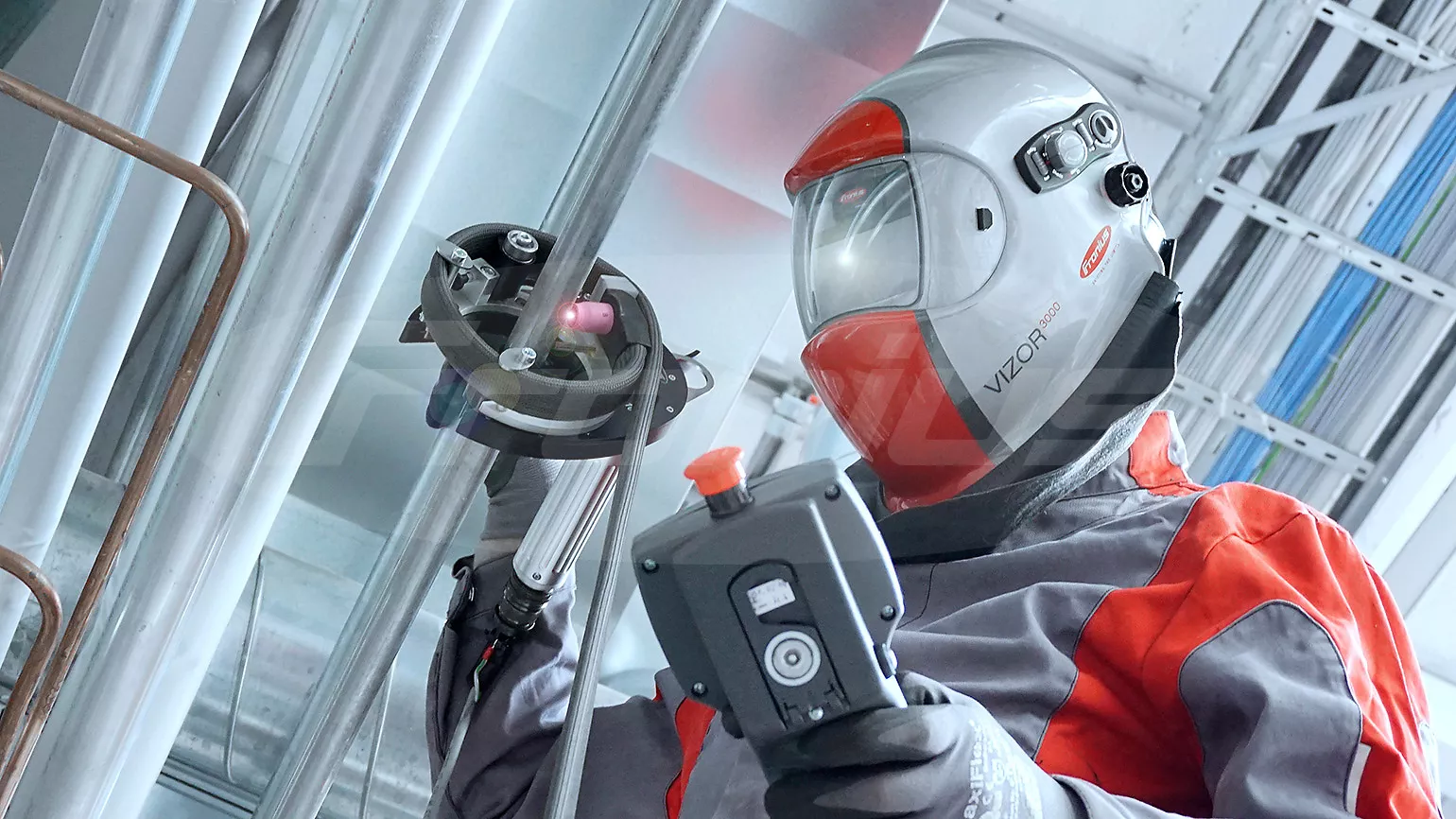

Pipe welding with open welding head

FOR FOH WELDING HEADS.

  • TTGO F++/ 5 m orbital welding torch (only with FOH 8 - 40)
  • TTWO 2000 F++/ 5 m orbital welding torch
  • Welding torch wearing-part box
  • FCH/FOH 10 m extension hosepack
  • KD 4000 D-11 wirefeeder
  • Two-axis wire adjustment
  • Wirefeed (wire diameters 0.8 - 1.2 mm)
  • Balancer spring return
  • FPA 3020/3030 orbital system controller

FOR FPA 3020 SYSTEM CONTROLLER.

  • Grounding cable, gas hose
  • PickUp trolley with console and toolbox
  • Pressure regulator
  • Open welding heads with/without welding wire
  • Hosepack extension
  • Manual welding torch
  • Printer paper

FOR FPA 3030 SYSTEM CONTROLLER.

  • FPA Xplorer software for offline/online use (data documentation/archiving)
  • Ethernet cable
  • TIG power source, cooling unit, KD supply
  • PickUp trolley
  • Hosepack extension
  • Printer paper

FOR KD 4000 WIREFEEDER.

  • Connection cable to system controller, 9 m
  • Two-axis wire adjustment with wirefeed for 0.8 mm wire
